How to Debug Business Central Production Environment by Snapshot Debugging Method

Snapshot debugging is the best way to debug the Business Central cloud production environment. It records AL codes that run on the server and after finishing the debugging all recorded snapshots are downloaded to your local project. You can debug any previously downloaded snapshots offline (Without connecting to the BC cloud server).

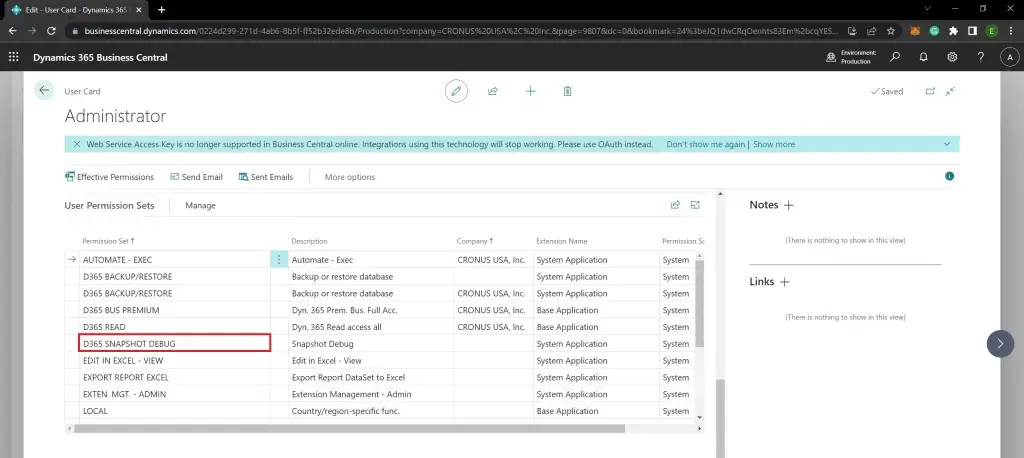

Required user permissions for snapshot debugging

The user must be part of the D365 Snapshot Debug permission set when initializing the debugging session with the cloud server.

Required user permissions for Snapshot debugging - AL

How to debug AL code using Snapshot debugging

Follow the below steps about debugging an error in the BC cloud production environment using a snapshot debugger.

  1. Open the AL project folder by Visual Studio Code.
  2. Open launch.json and add the below configuration setting related to the snapshot debugging and change the tenant id:
    {
          "name": "snapshotInitialize: Microsoft production cloud",
          "type": "al",
          "request": "snapshotInitialize",
          "environmentType": "Production",
          "environmentName": "production",
          "breakOnNext": "WebClient",
          "executionContext": "DebugAndProfile",
          "tenant": "Specify the tenant id"
    }

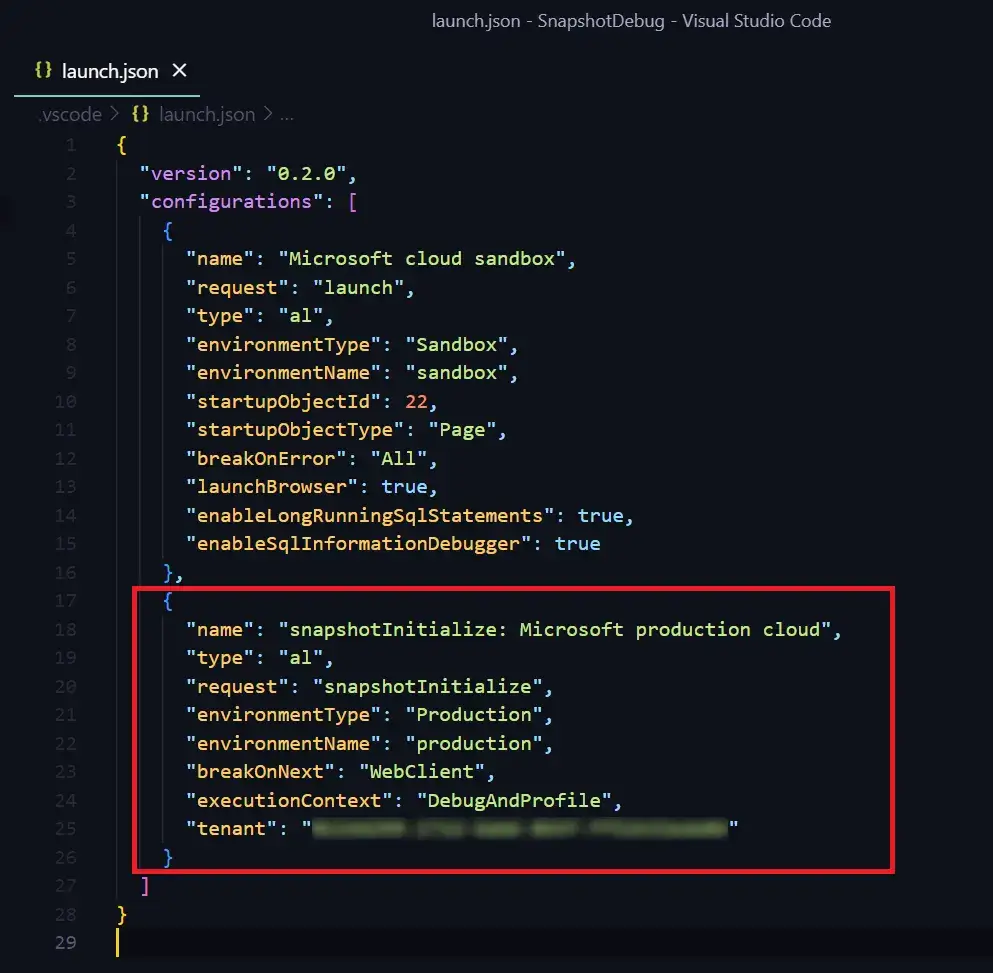

    Here is the example:
    Add configuration setting to launch.json related to Snapshot debugging

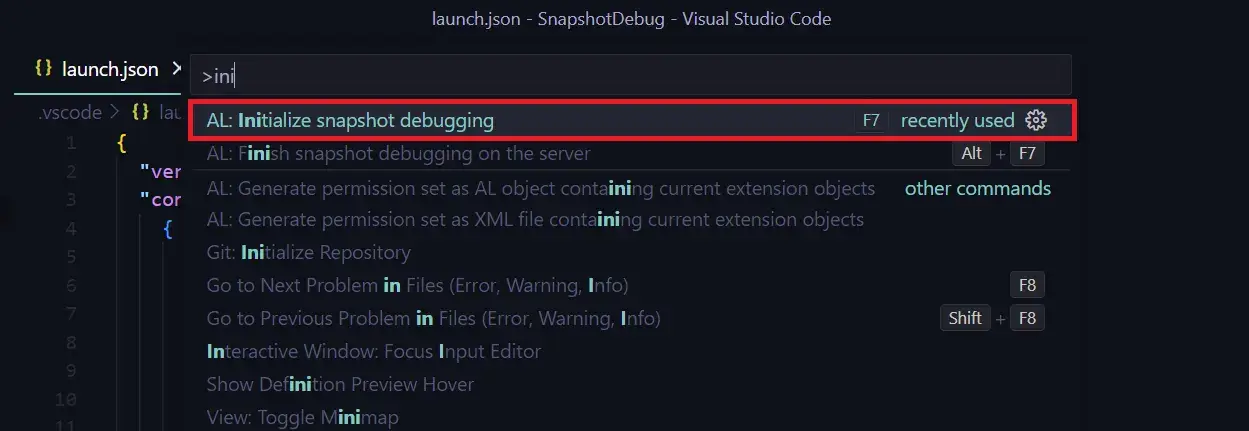

  3. Go to the command palette (Ctrl+Shift+P) and type “AL: Initialize snapshot debugging” and Enter (F7 is the shortcut key) to start the debugging session:
    AL: Initialize snapshot debugging - Business Central - VS Code

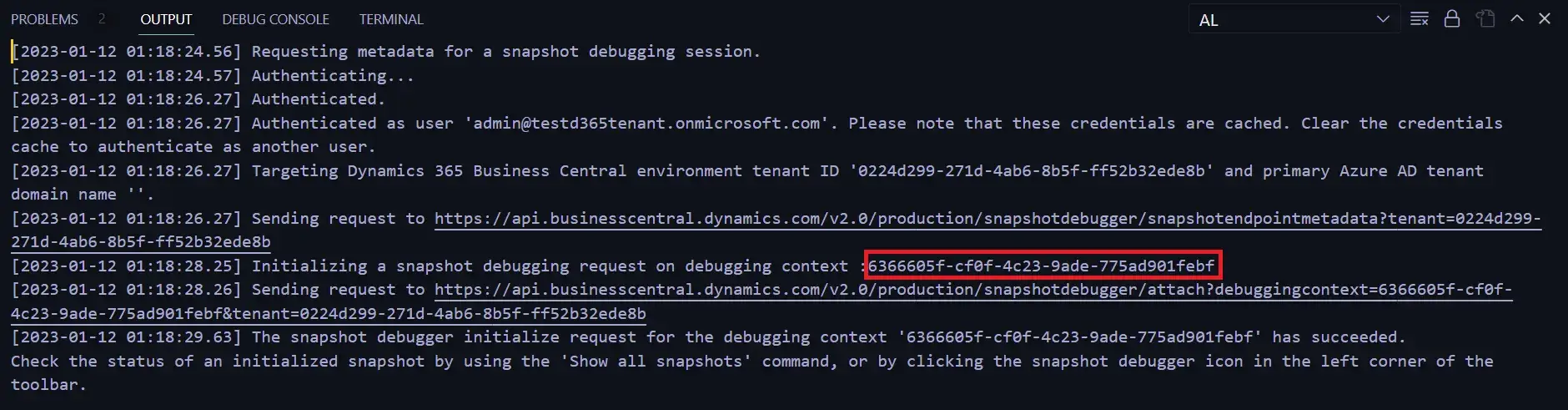

    Now It starts a new snapshot debugging session and the session id will show in the output console:
    Initialize snapshot debugging with new session id Business Central - AL

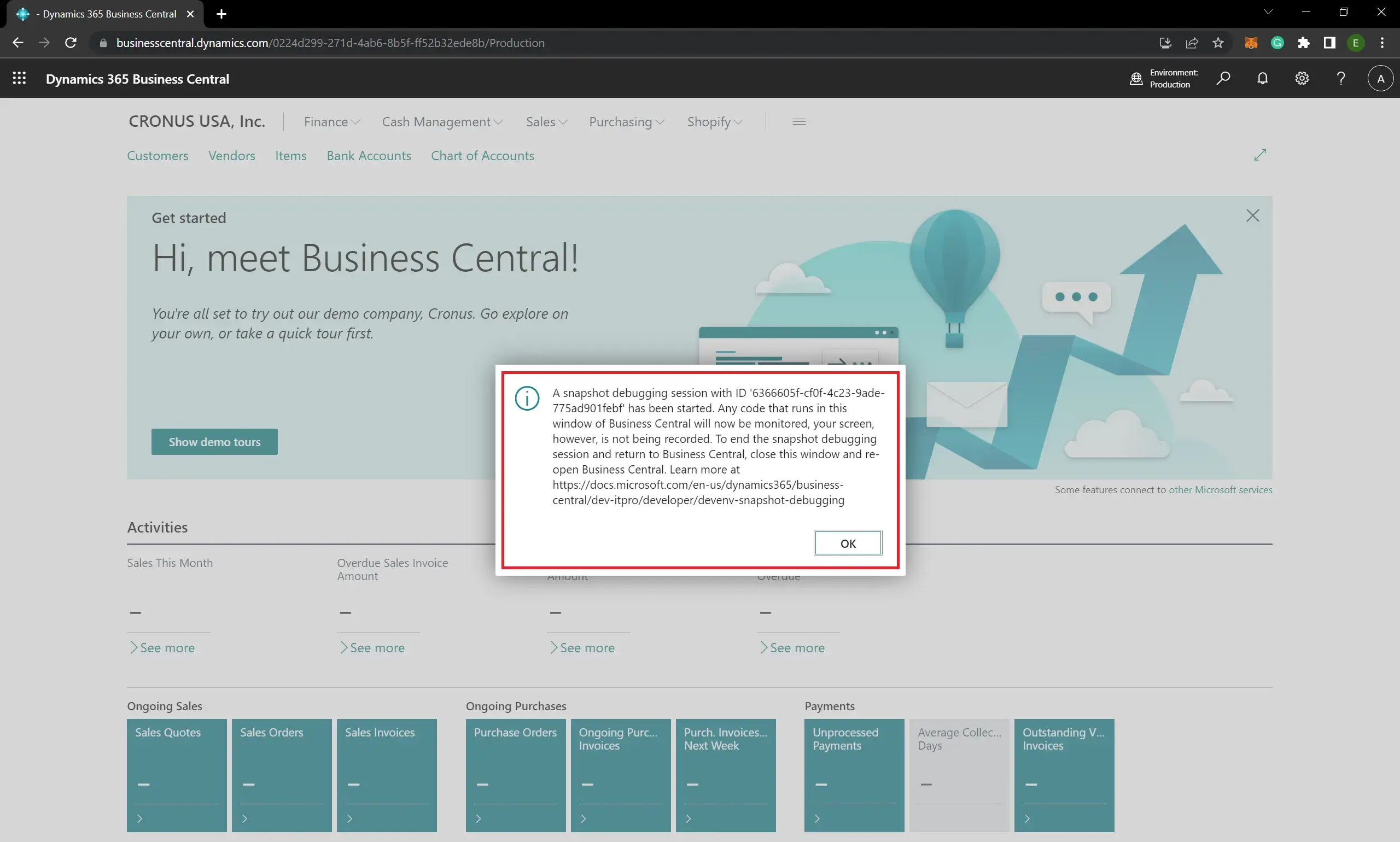

  4. Reload the Business Central in the browser and it will notify details of the snapshot debugger session as per the below:
    Snapshot debugging record session D365 Business Central Production environment - AL

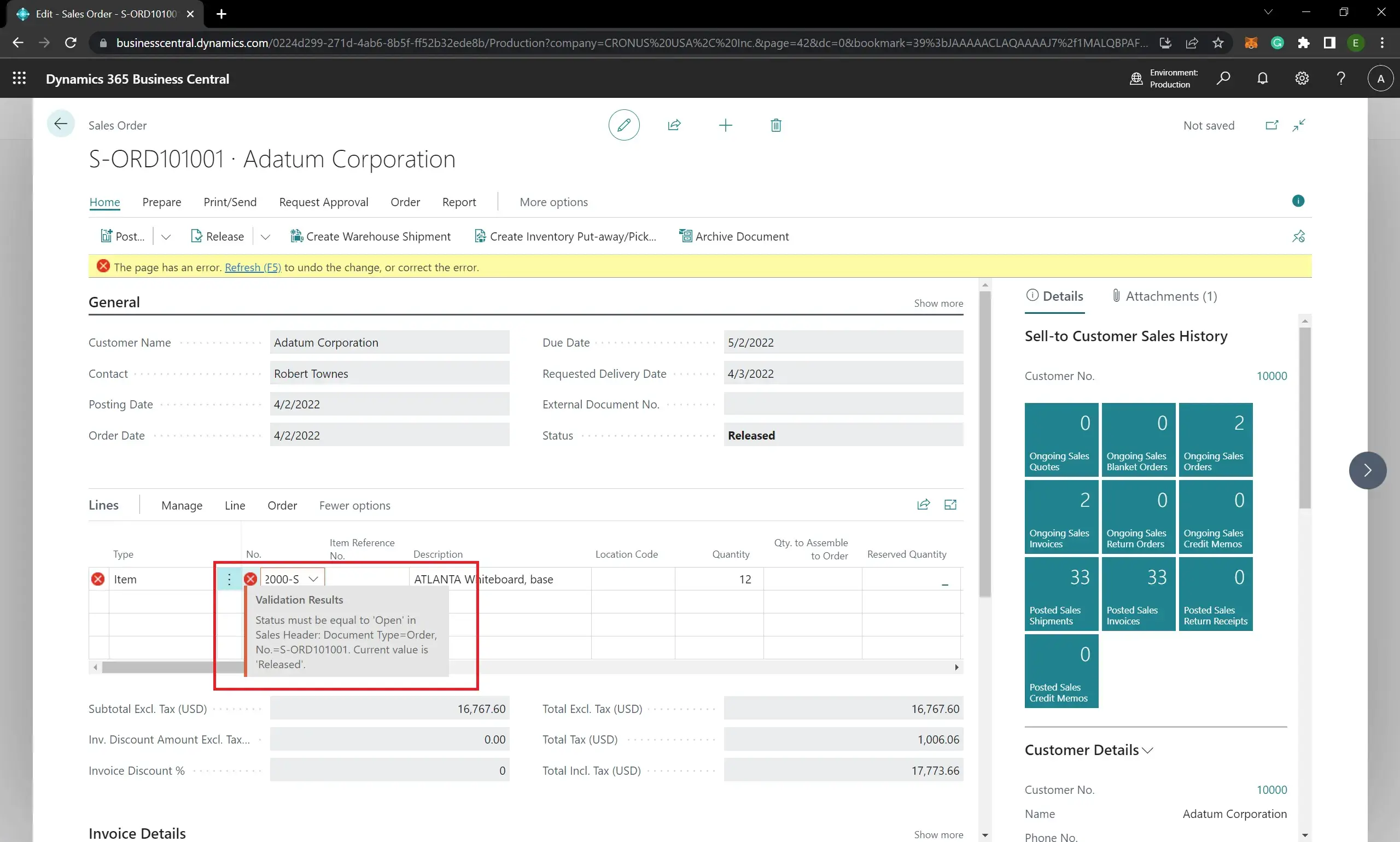

  5. Now you can test any error or process and the snapshot debugger is recording every AL code relevant to any process that you are doing the Business Central. As an example I test the validation error in the sales order:
    How to debug an error using snapshot debugger D365 BC - AL

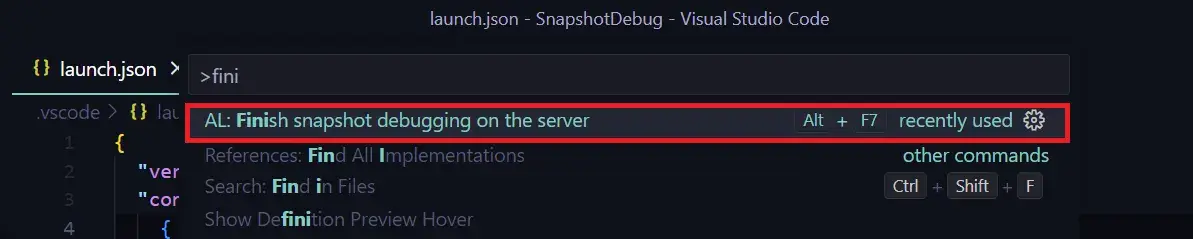

  6. After testing, go to the command palette (Ctrl+Shift+P) and type “AL: Finish snapshot debugging on the server” and Enter (Alt+F7 is the shortcut key):
    Finish snapshot debugging on the server - AL

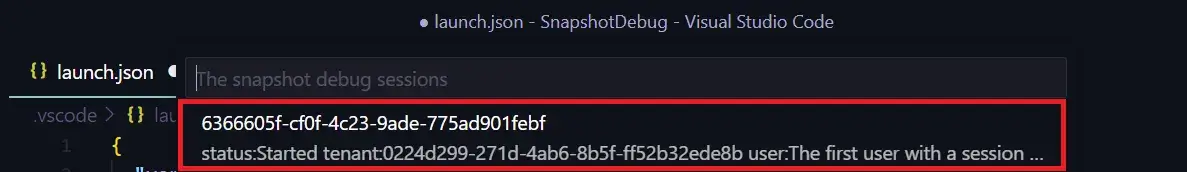

  7. Select the relevant session to finish:
    Finish snapshot debugging on the server D365 BC
    Now recorded snapshot file with AL codes will be downloaded as a .zip file named session id to the snapshot folder.
  8. Finally, click the snapshot debug session list Icon (Shift+F7) in Visual Studio Code and select the relevant session ID to debug the AL code:
    Snapshot debug icon Visual Studio Code

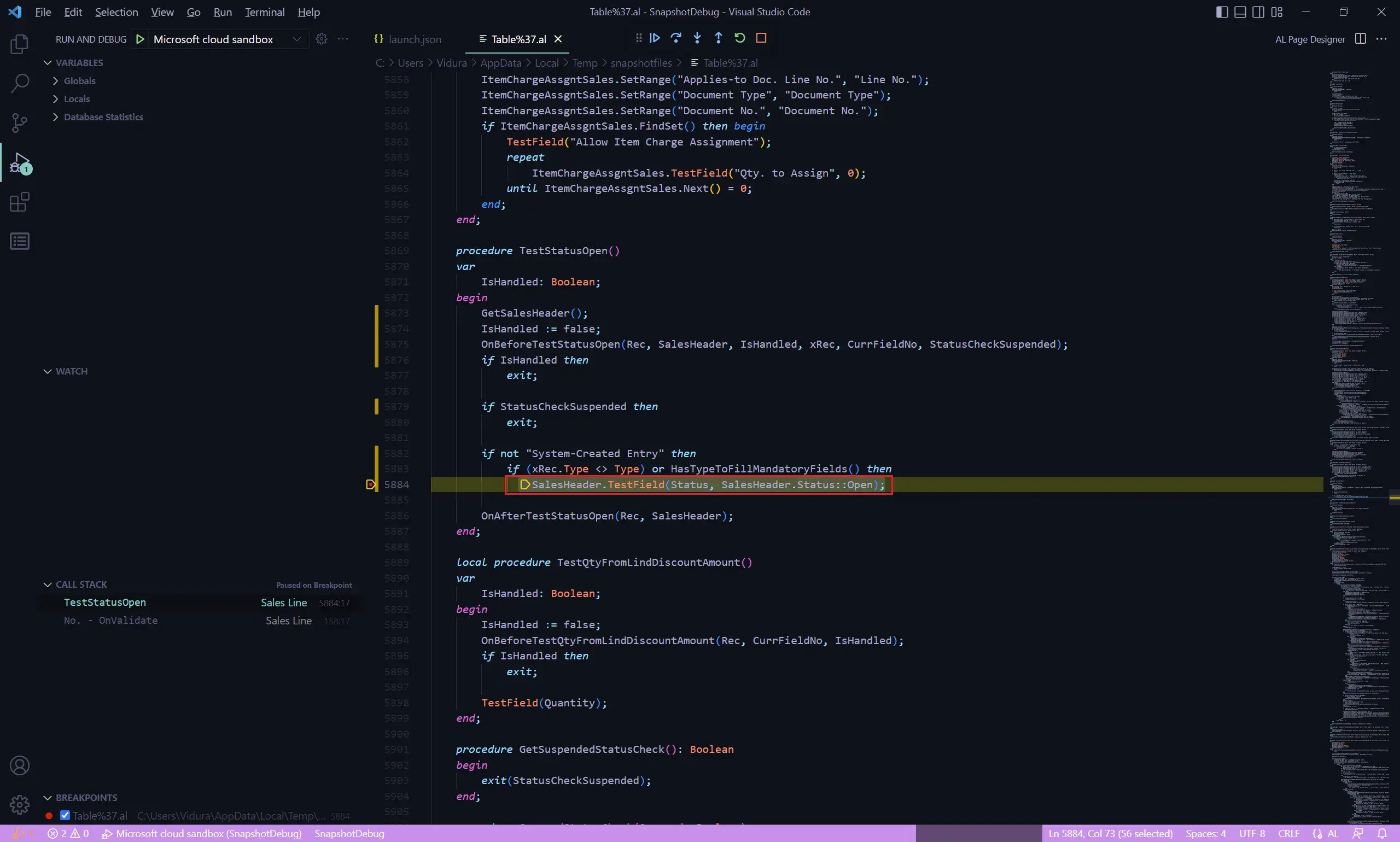

    Here is the break point:
    Snapshot offline AL code debugger Dynamics 365 BC

You can debug any downloaded snapshots as in the previous step without connecting to the BC cloud server. Also, you generate a profile with recorded AL triggers during the session by “AL: Generate profile file” command in the command palette.
